EvoIII Splitter install
24 July 2001

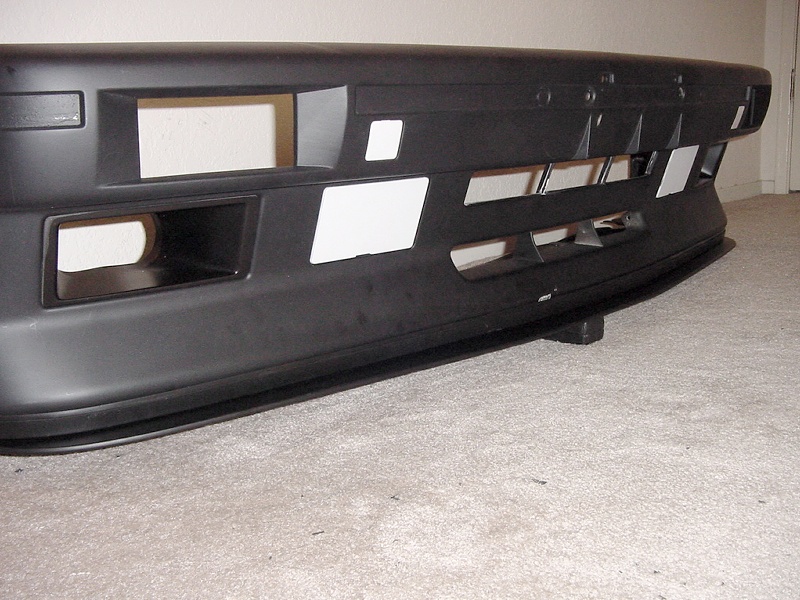

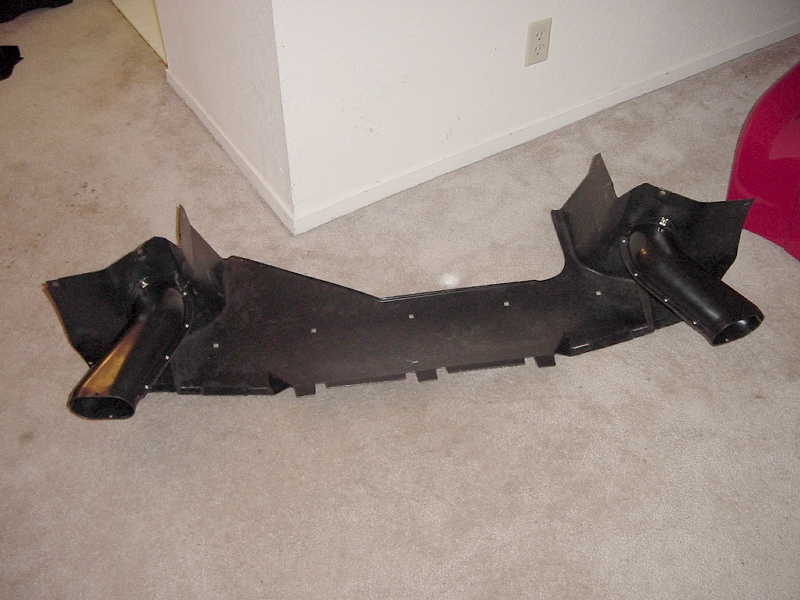

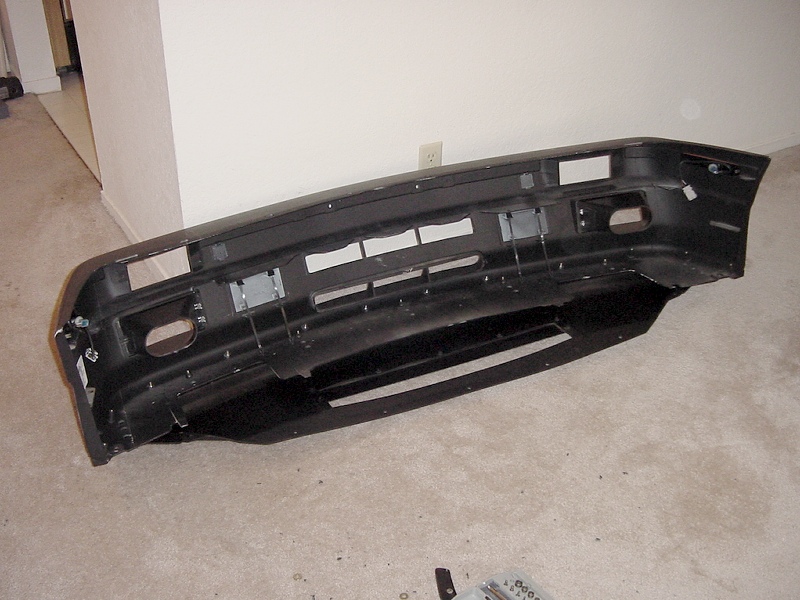

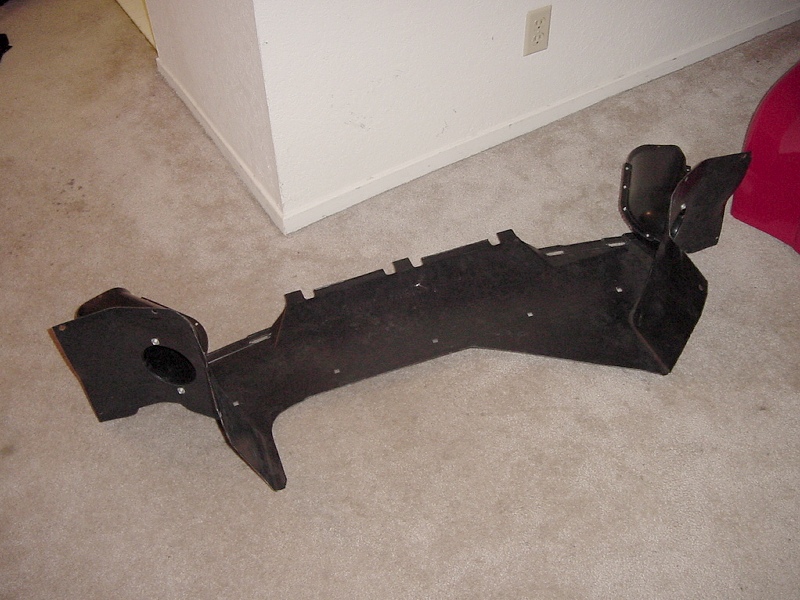

primered	test fit	undertray with ducts	undertray with ducts

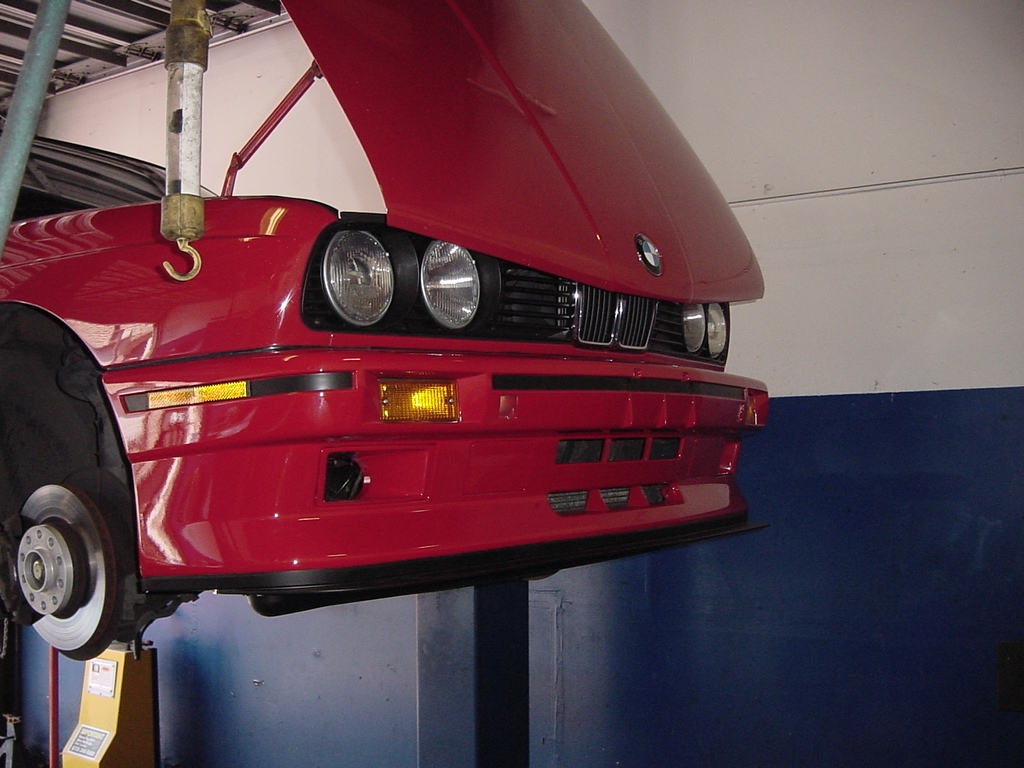

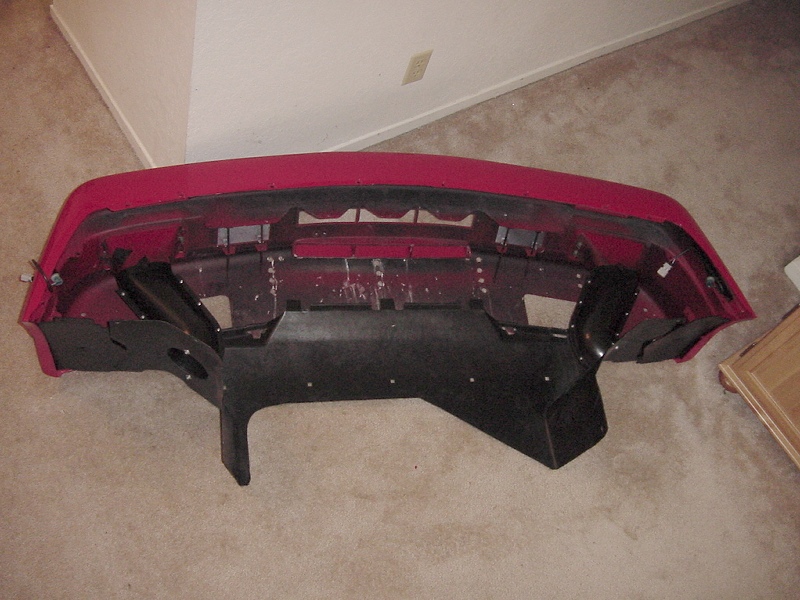

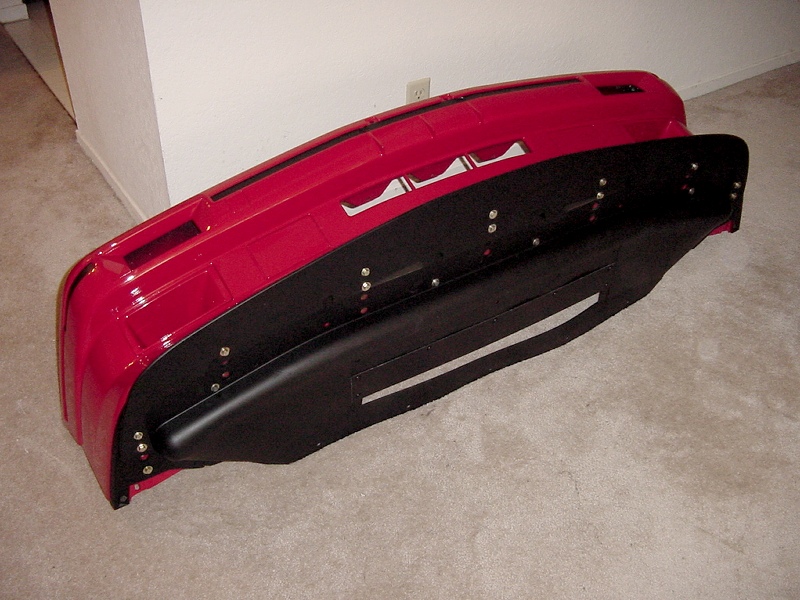

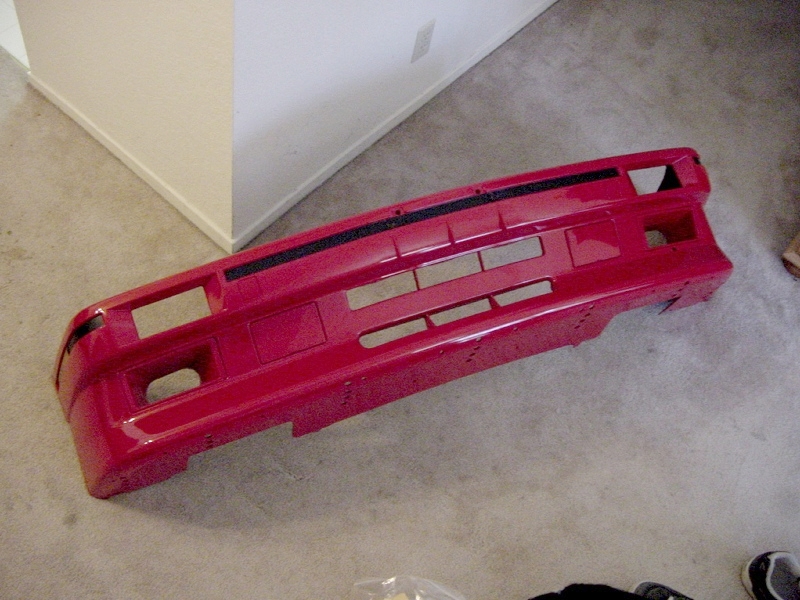

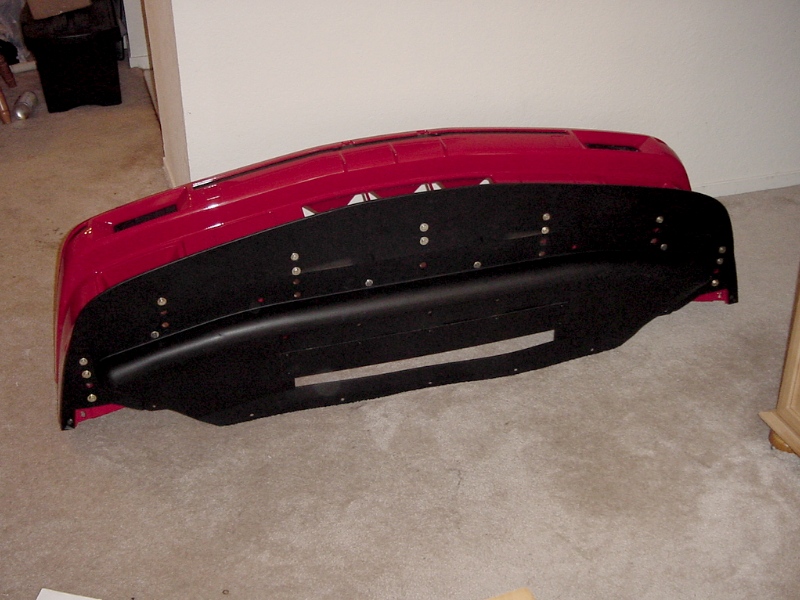

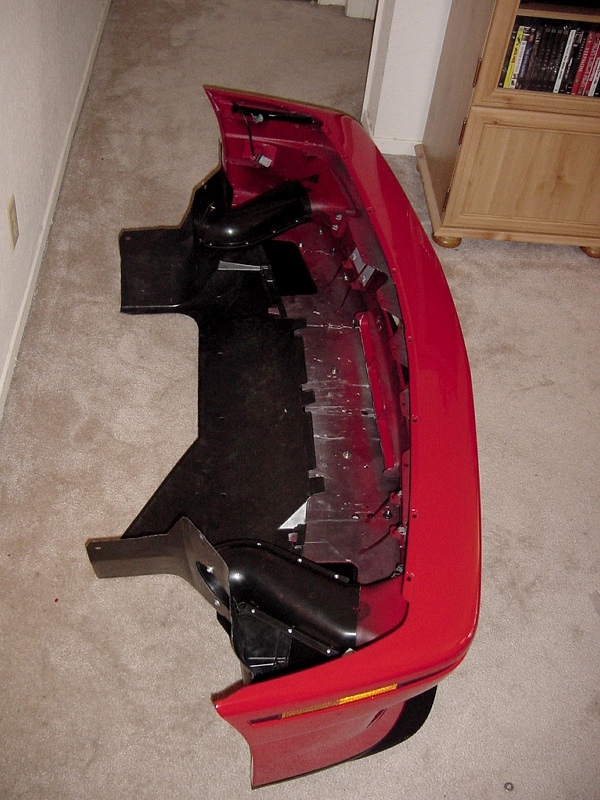

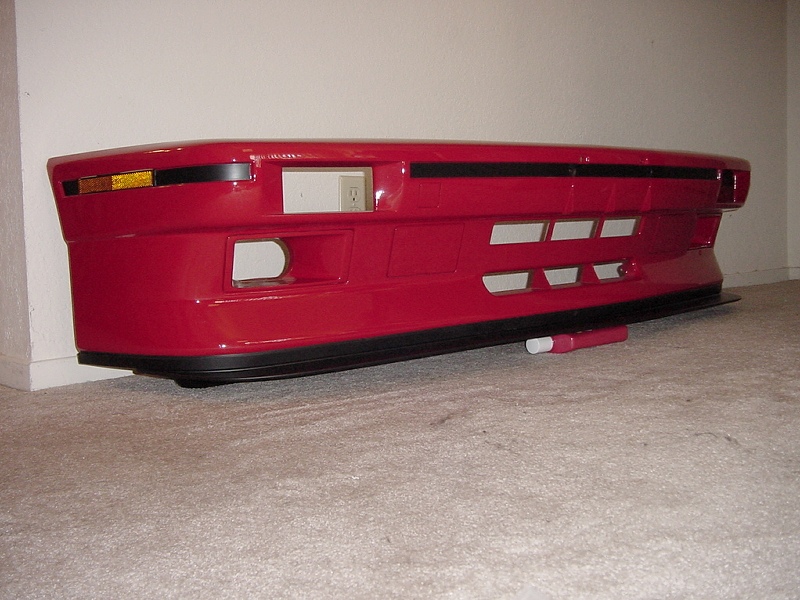

bumper cover with ducts	splitter detail	undertray detail	second test fit

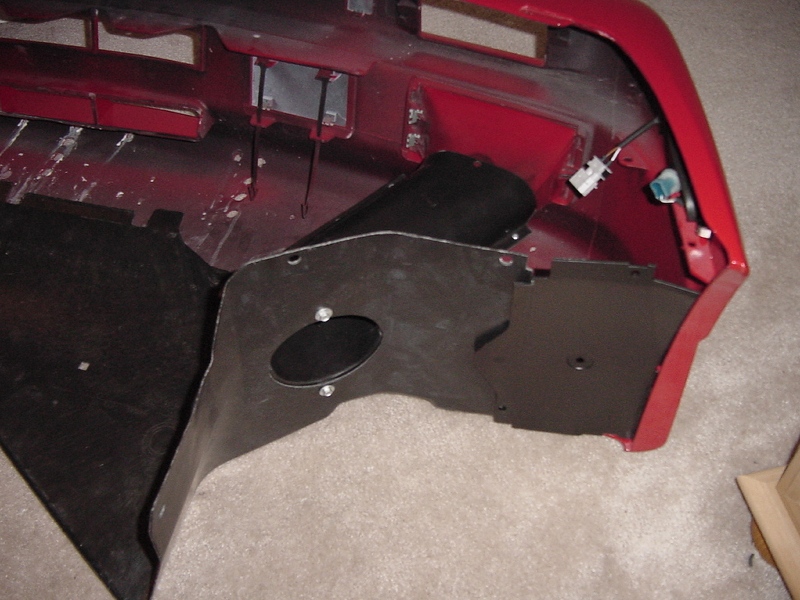

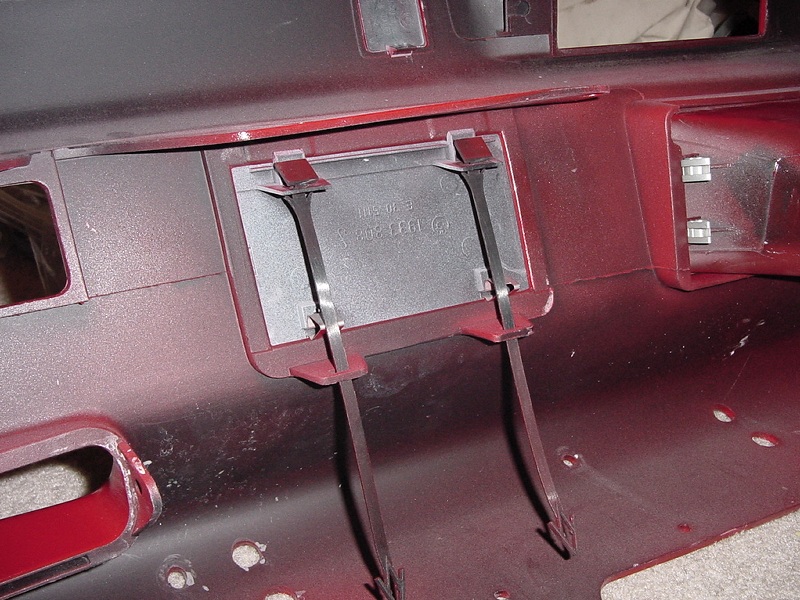

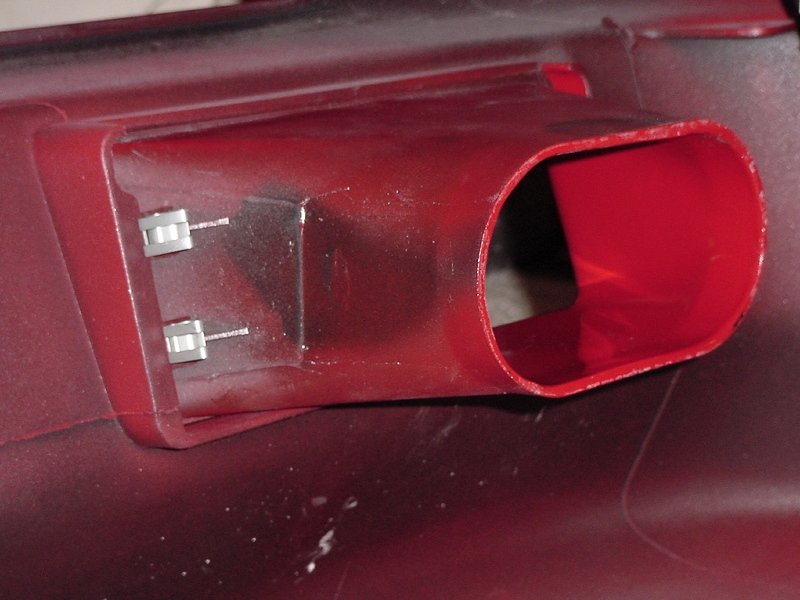

	under tray detail	cooling duct detail	towhook cover detail

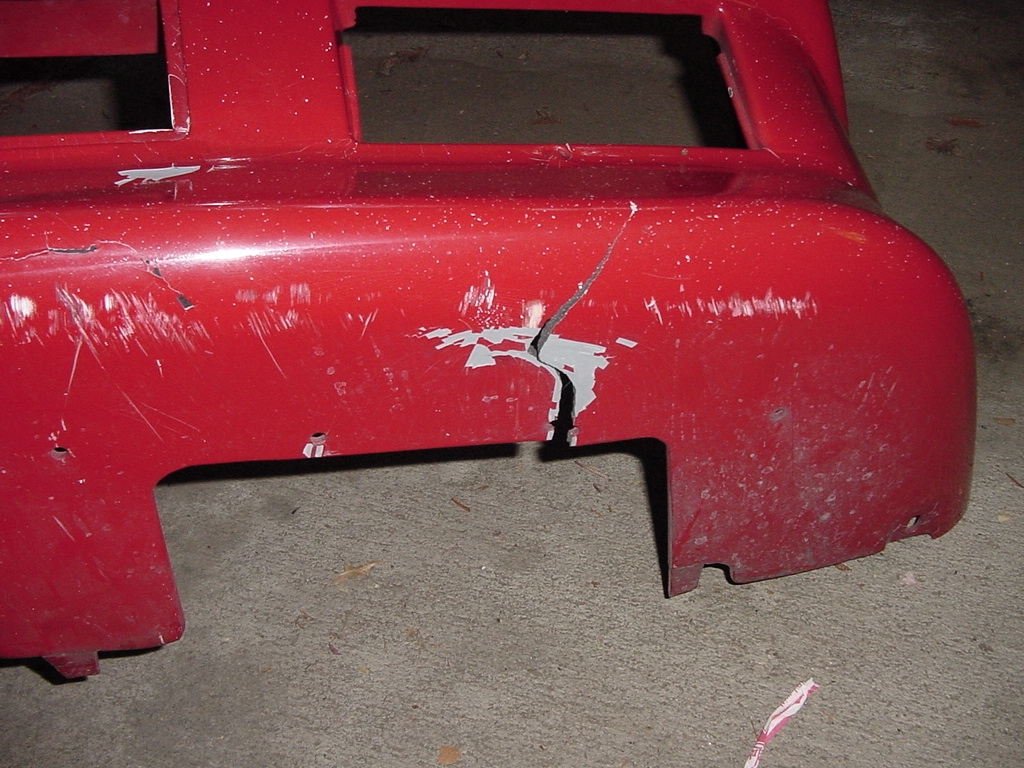

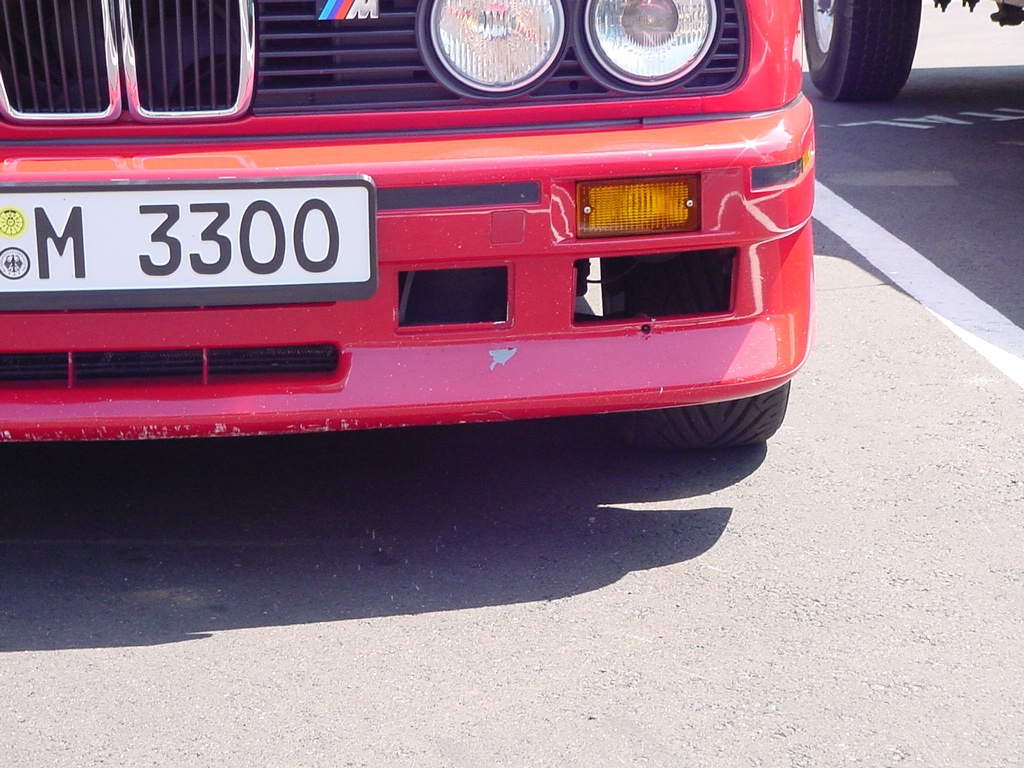

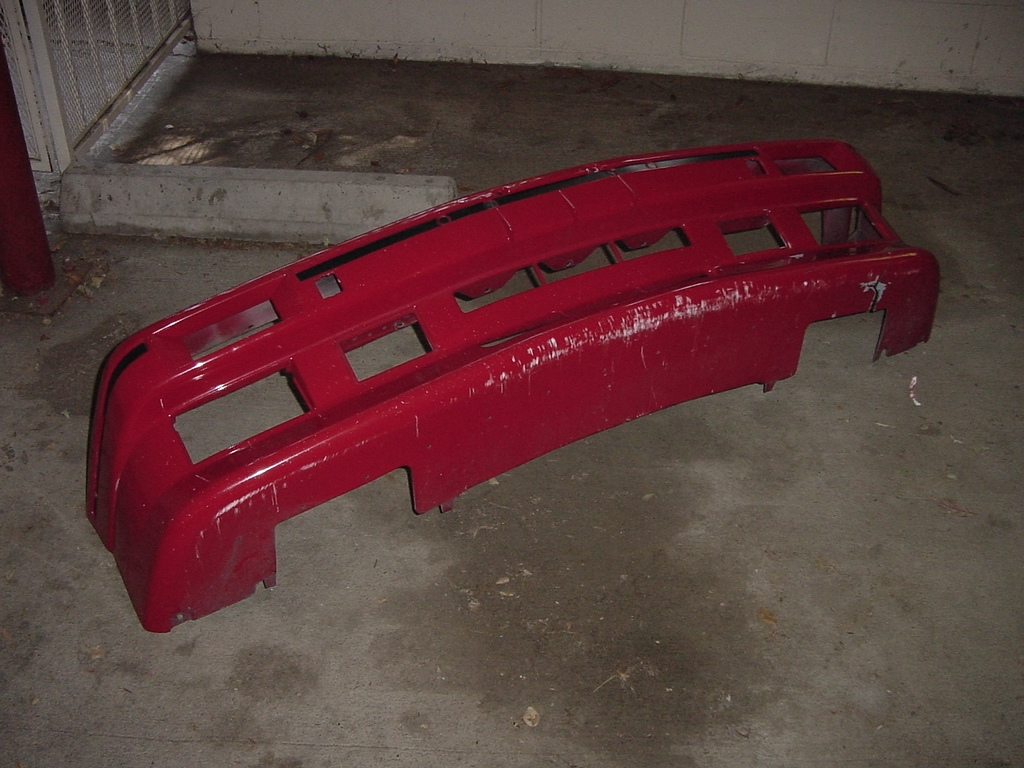

cooling inlet	before	raccoon damage	old bumper cover

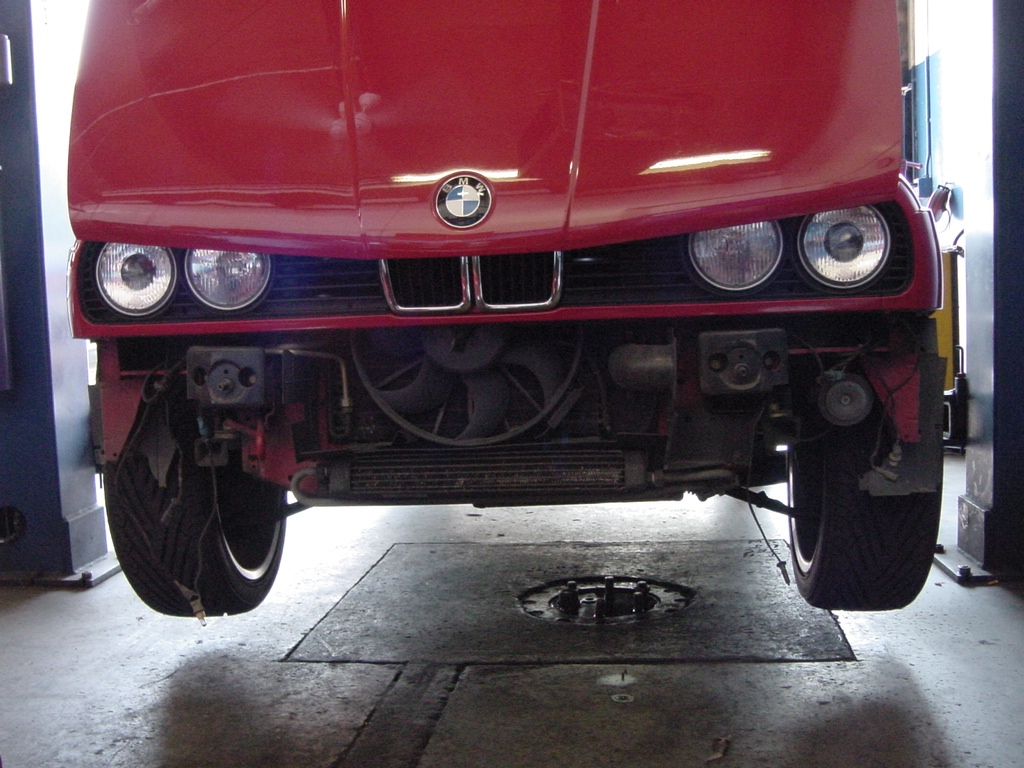

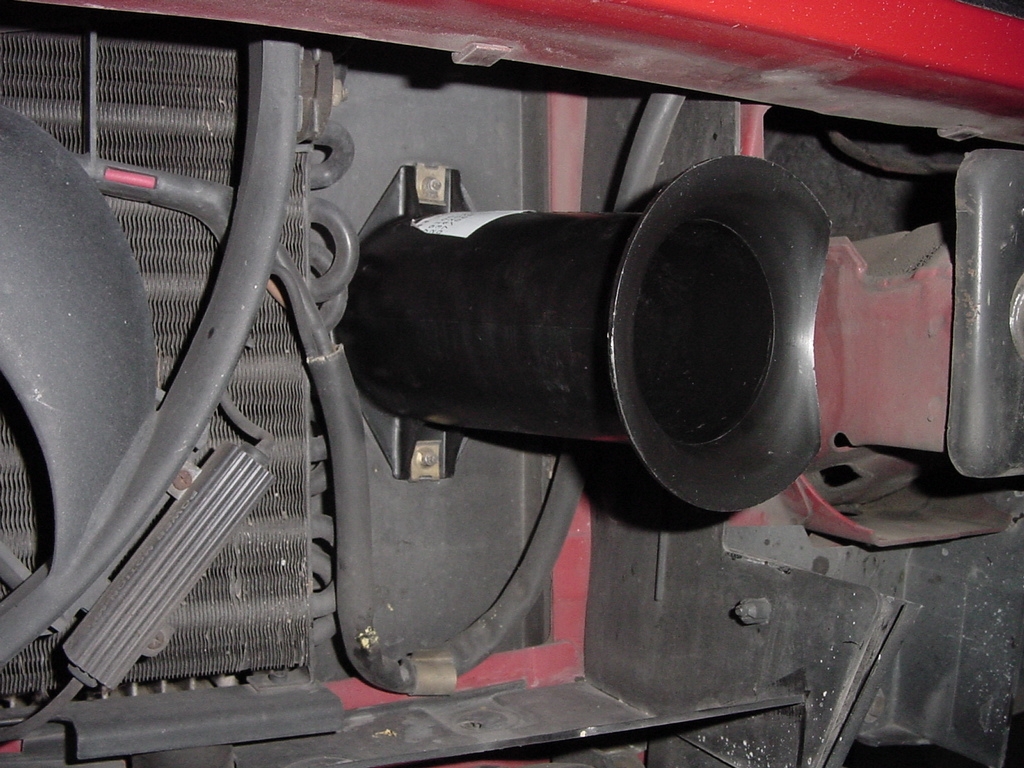

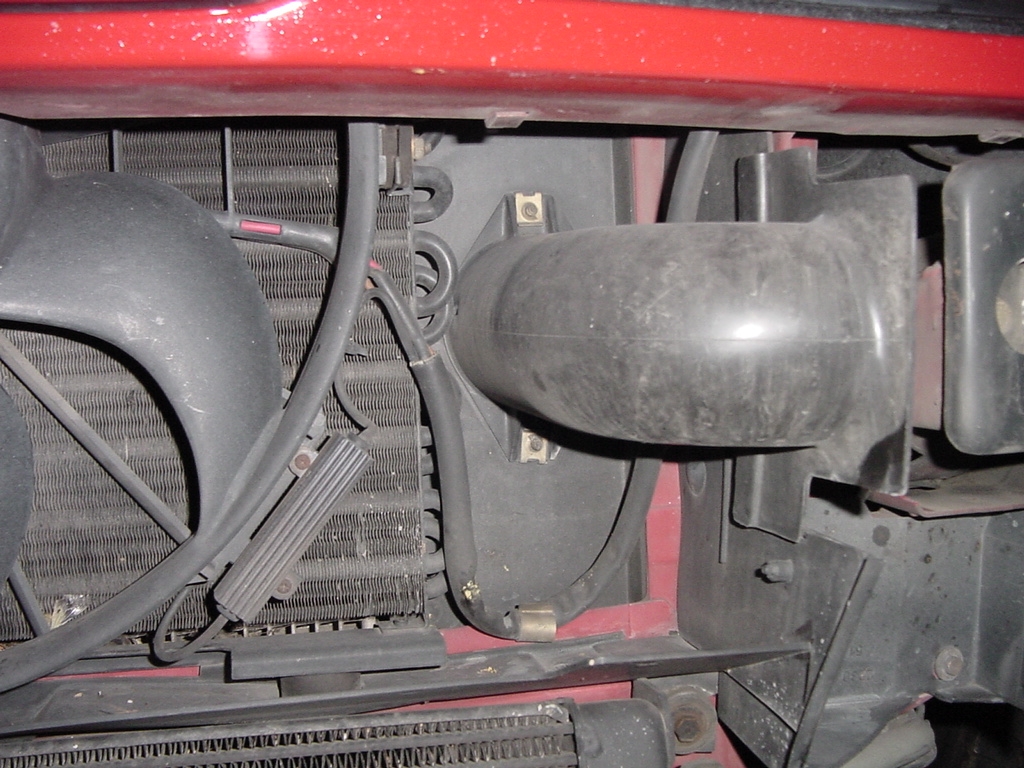

raccoon damage detail	I have no chin!	stock intake	evo intake

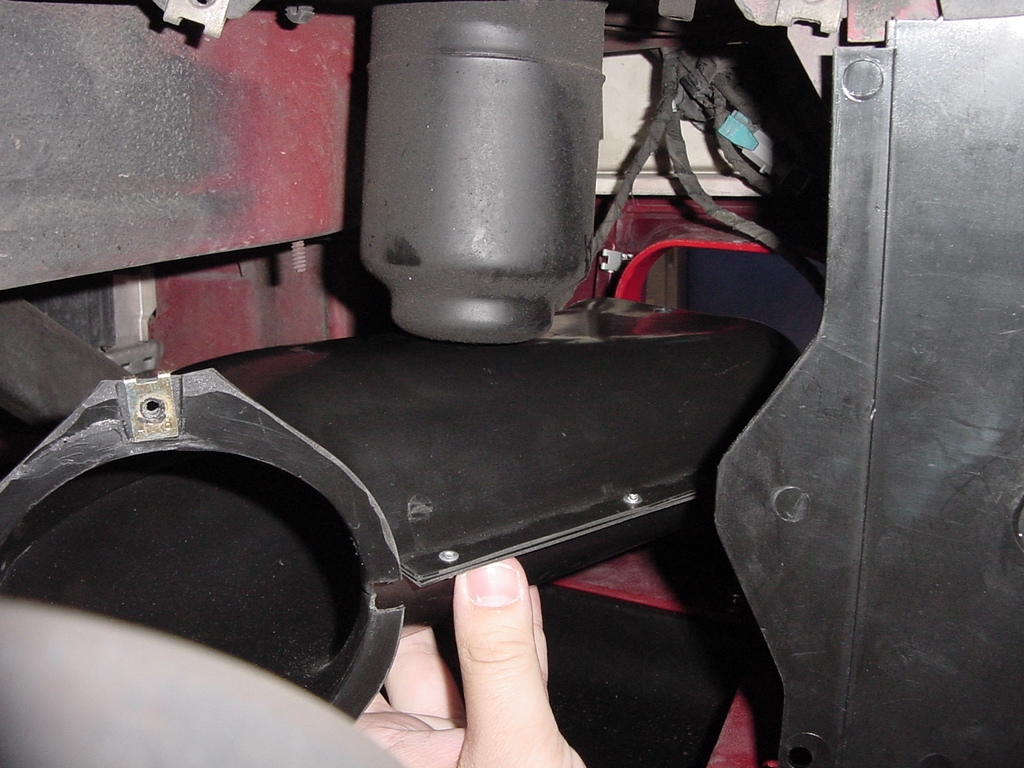

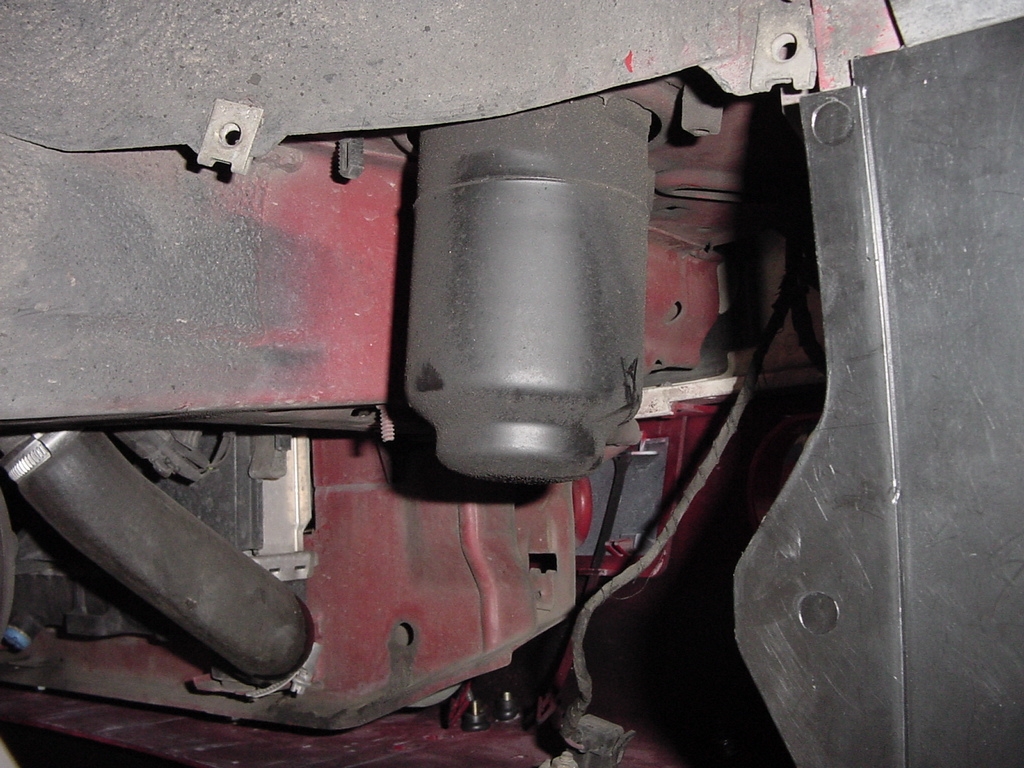

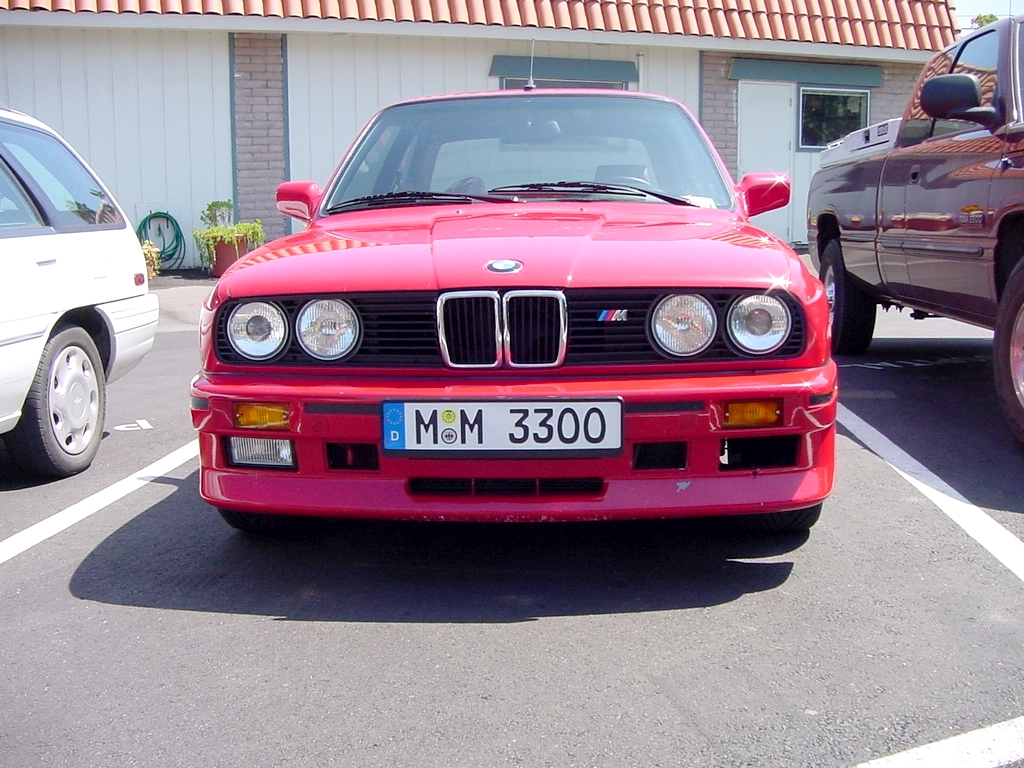

98% complete	clearance problem*	A/C dryer	fin!

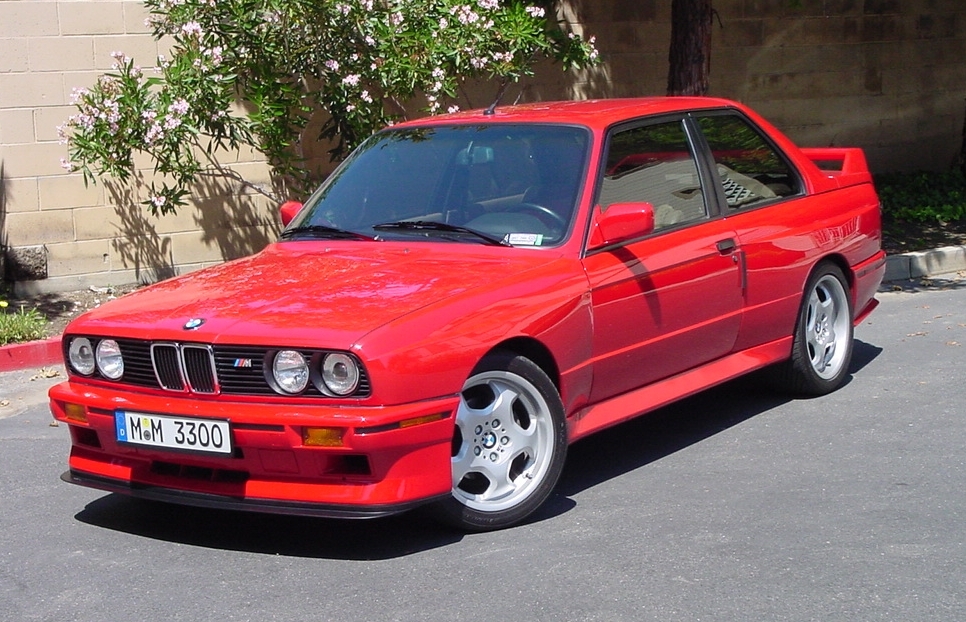

sexy

*I quickly obtained the proper duct with a cutout to clear the air dryer. This only applies to models with A/C (basically all US models)

Contact Maximillian Importing company @1.800.950.2002 Matt and Paul were a great help in getting me everything I needed.

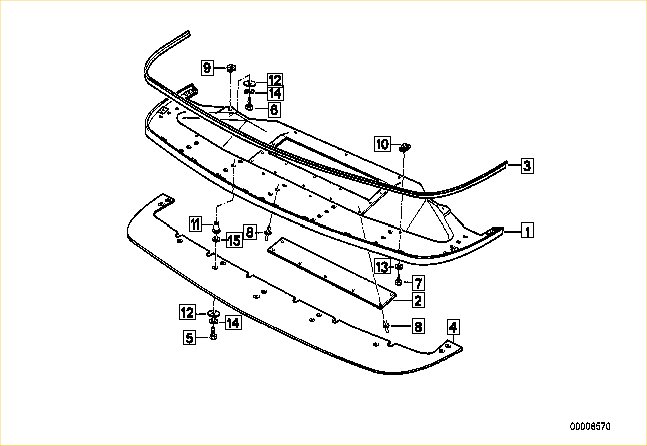

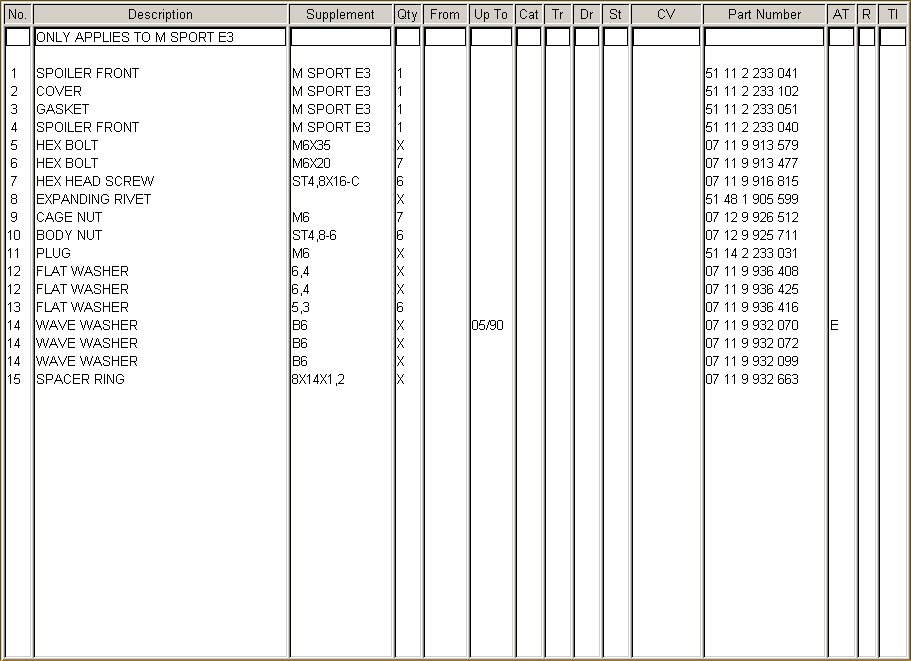

Parts List:


(Click to view larger image)



Other parts include:

Air Channel Left	51 71 2 238 247	109.00
Air Channel Right	51 71 2 238 248	109.00
Fixing Clamp (x4)	51 71 1 910 956	1.25
Air Duct (x2)	51 71 2 230 660	78.00
WITH A/C (passenger side)	51 71 2 230 042	150.00
Expanding Rivet (x4)	51 11 1 908 077	.20
Evolution III Undertray	51 71 2 233 043	118.00

Prices current as of July 2001
